Ratchet Jacks: Are ideal for heavy-duty industrial maintenance. These are the most versatile, general-purpose jacks available. Rugged construction permits safe, efficient lifting, lowering, skidding, moving, sustaining and leveling with the important SIMPLEX feature that provides full lift capacity on the toe or on the cap.
Enerpac Jacks & Cylinders
Rent or buy a Full Range of Enerpac Ratchet Jacks from wb equipment
CALL US on 866-522-5464 or Request A Quote Below
Enerpac RJ84A, Ratchet Jack, 5 ton (44,5 kN) Capacity, 7 in (177,8 mm) Stroke, Steel Housing
- Multiple-tooth pawls for strength & safety.
- Large base ensures a firm foundation.
- Drop-forged, alloy steel, heat-treated components.
- Plated springs to resist corrosion.
- Double-lever sockets for jacking in close quarters.
- Our Jack design specifications meet or exceed ANSI / ASME B30.1 Safety Standards
- Carrying handles make the positioning and transporting of the 10 (44,5), 15 (89) and 20 (133,4) ton (kN) ratchet jacks simple.
Capacity (imperial tons) 5
Stroke (in) 7
Minimum Height Toe (in) 1.75
Maximum Height Toe (in) 8.75
Power Source Mechanical
Jack Housing Material Steel
Handle Effort per Ton (lbs) 32
Weight (lbs) 28

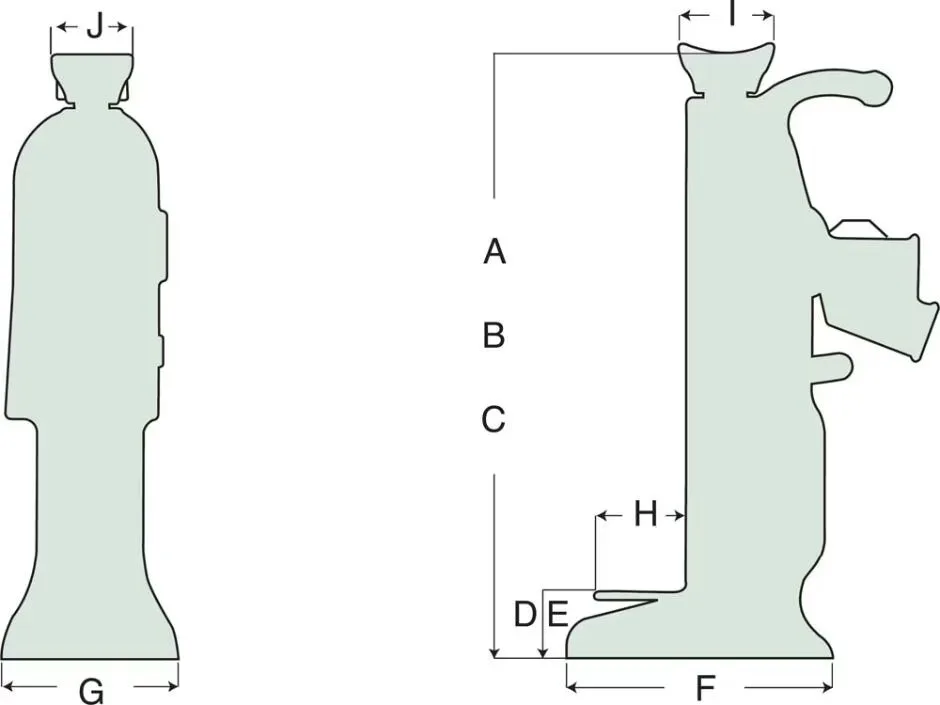

Product Dimensions
Collapsed Height 14″ (355,6 mm)
Dimension A 14″ (355,6 mm)
Dimension B 21″ (533,4 mm)
Dimension C 7″ (177,8 mm)
Dimension D 1.75″ (44,5 mm)
Dimension E 8.75″ (222,3 mm)
Dimension F 7.38″ (187,5 mm)
Dimension G 5″ (127,0 mm)
Dimension H 2.5″ (63,5 mm)
Dimension I 2.62″ (66,5 mm)
Dimension J 2.31″ (58,7 mm)
Base Length 7.38″ (187,5 mm)
Base Width 5″ (127,0 mm)
Toe Length 2.5″ (63,5 mm)
Cap Length 2.62″ (66,5 mm)
Cap Width 2.31″ (58,7 mm)
